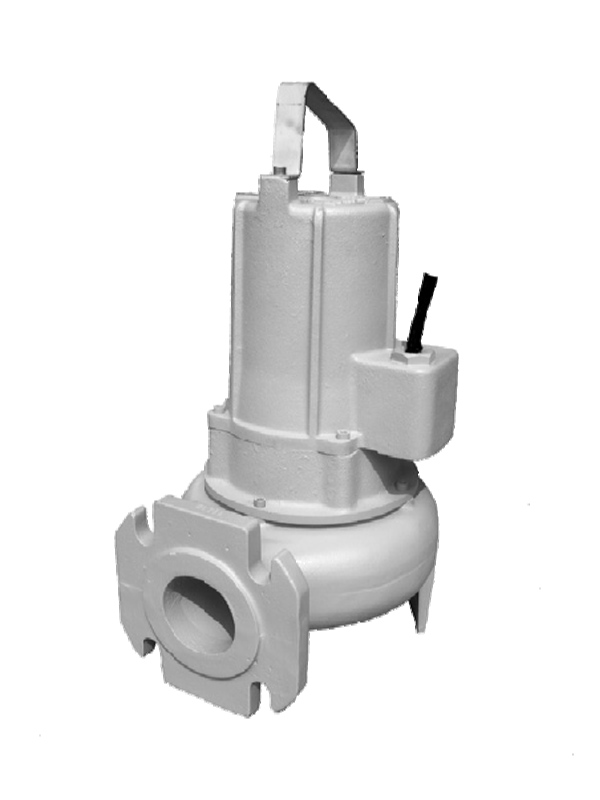

65TR2 - bipolar DN65 sewage pump with VORTEX rotor 0.75kW/230V -400V - 2900 RPM
Couldn't load pickup availability
2 polar sewage pump 65TR2 with Vortex Vortex Factory Vortex Pump Rotomec SRL It is intended for pumping large amounts of sewage containing solid bodies with a slight lift.
The VORTEX multi -colored rotor with a large free flight guarantees that the pump will not clog even large or long solid fractions such as wet wipes, hyginical sticks, pieces of rags or residues of food from a restaurant kitchen.
Rotomec 65TR2 sewage pumps have high efficiency with relatively low power. These pumps have a free flight under a 55 mm rotor, providing high efficiency and protecting against clogging the content of faeces and septic tanks.
Parameters:
- Pump power: 0.75 kW
- Power supply: 230V or 3 ~ 400 V
- 2 polar engine - 2900 rpm.
- Maximum lifting: 8 m
- Maximum capacity: 12 l/s - 720 l/min. - ~ 44 m3/h
- Size of pollution: up to 55 mm
- Maximum temperature of the liquid: 40 ° C
- Horizontal connection DN65 PN10
- Protection degree: IP68
- Long cable: 10 m
- Dimensions: 290 mm, h = 487 mm

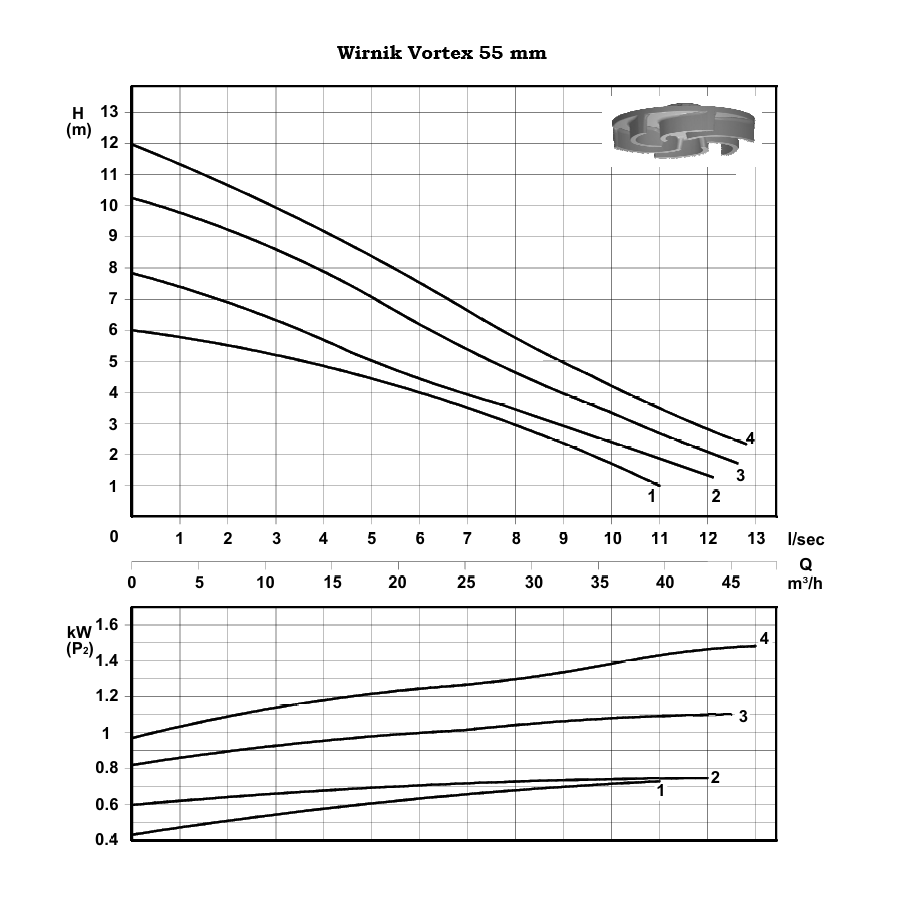

- Characteristics No. 2
Advantages:
- High low power performance
- Highly resistant to clogging
- Double mechanical seal in the oil chamber
- Horizontal flange connection for easy installation with a coupling foot
- Resistance to pollution up to 55 mm
Available version:
- M - 1 ~ 230 V (without a start -up can and boot capacitor)
- MB - 1 ~ 230V (with a boot can with a capacitor and thermal protection)
- MG - 1 ~ 230 V (with a swimmer, boot can with a capacitor and thermal protection)
- No marking - 3 ~ 400 V
Construction:
- Cage type asynchronous engine, 2-paddled, cooled surrounding liquid
- Insulation class f
- Engine housing: G25 gray cast iron
- Pump body: G25 gray cast iron
- Pump rotor: G25 gray cast iron
- Aisi 420 steel stainless steel,
- Cast iron legs built into the body
- Electric cable neoprene H07RNF oil resistant,
- Class A2 / AISI 304 screws,
- Mechanical sealing seal: silicon carbide
- Upper mechanical seal: graphite/ceramics
Pump on request!
