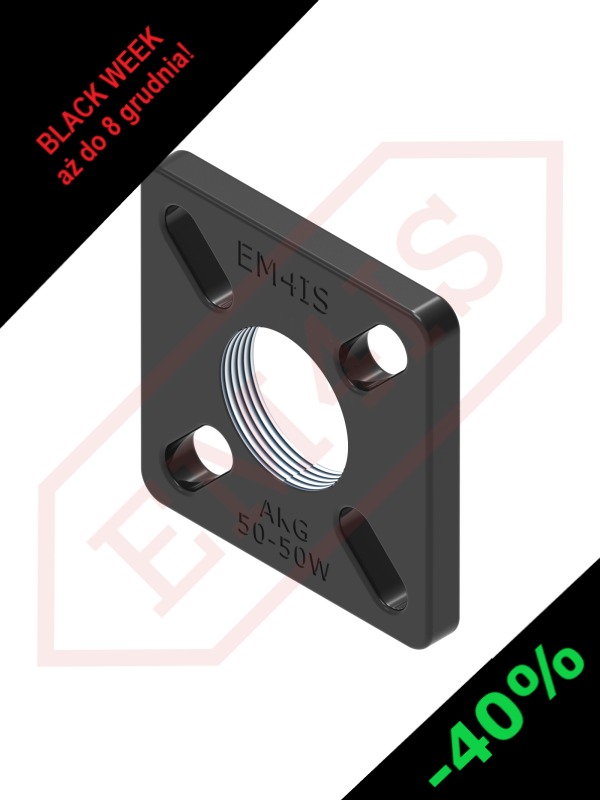

AKG 50-50W flange-flexible adapter DN50 x 2 "GW for sewage pumps
Couldn't load pickup availability
Adapter / adapter / connector for sewage pumps and coupling elbow.
AKG 50-50W adapters as the name suggests, they are used to connect various types of pumps and pipeline elements that do not have common connections using screws (flanges) or threads. Thanks to the use of unique and proprietary solutions of the EM4IS company, you can easily connect, for example, a pump with an internal thread with a flange coupling foot coupling or vice versa.
What are the differences between AKG adapters?
AKG flange-threaded adapters are distinguished by:
- full passage through the hydraulic system (through channel) of a ball with the dimensions included in the name of the adapters:
- 50-50Z - 50 mm (male thread)
- 50-50W - 50 mm (internal thread)
- 50-40Z - 40 mm (male thread)
- 50-32Z - 32 mm (male thread)
- oval holes enabling smooth adjustment of the screw spacing depending on the diameter of the connection flange from DN32 PN6 to DN65 PN6
- small construction dimensions

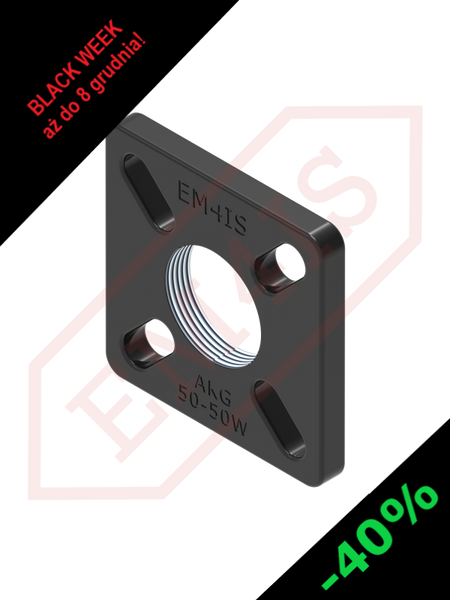

Construction of AKG adapters

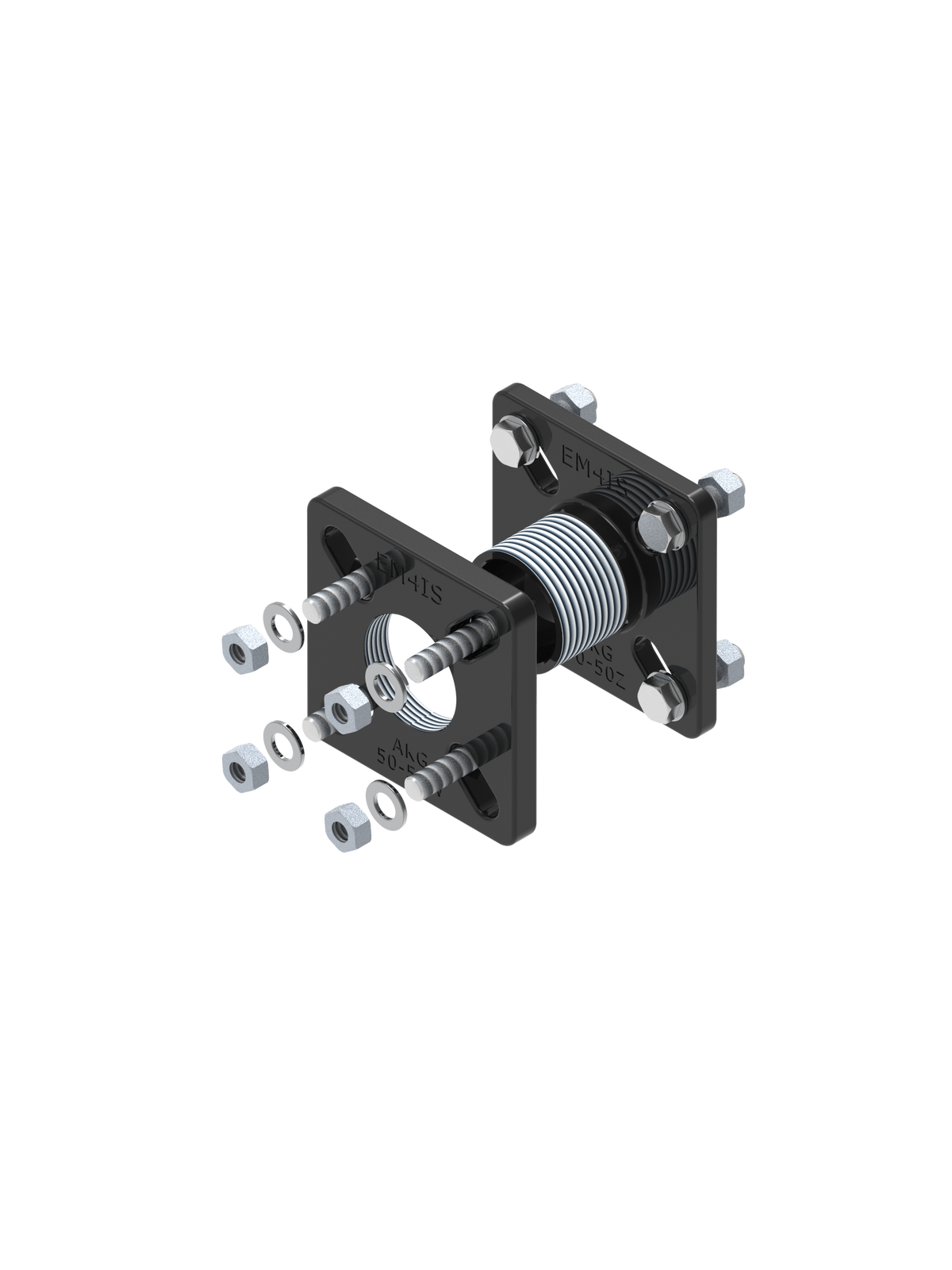

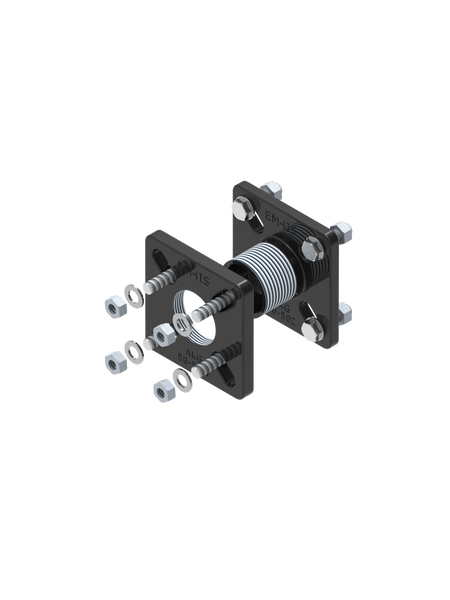

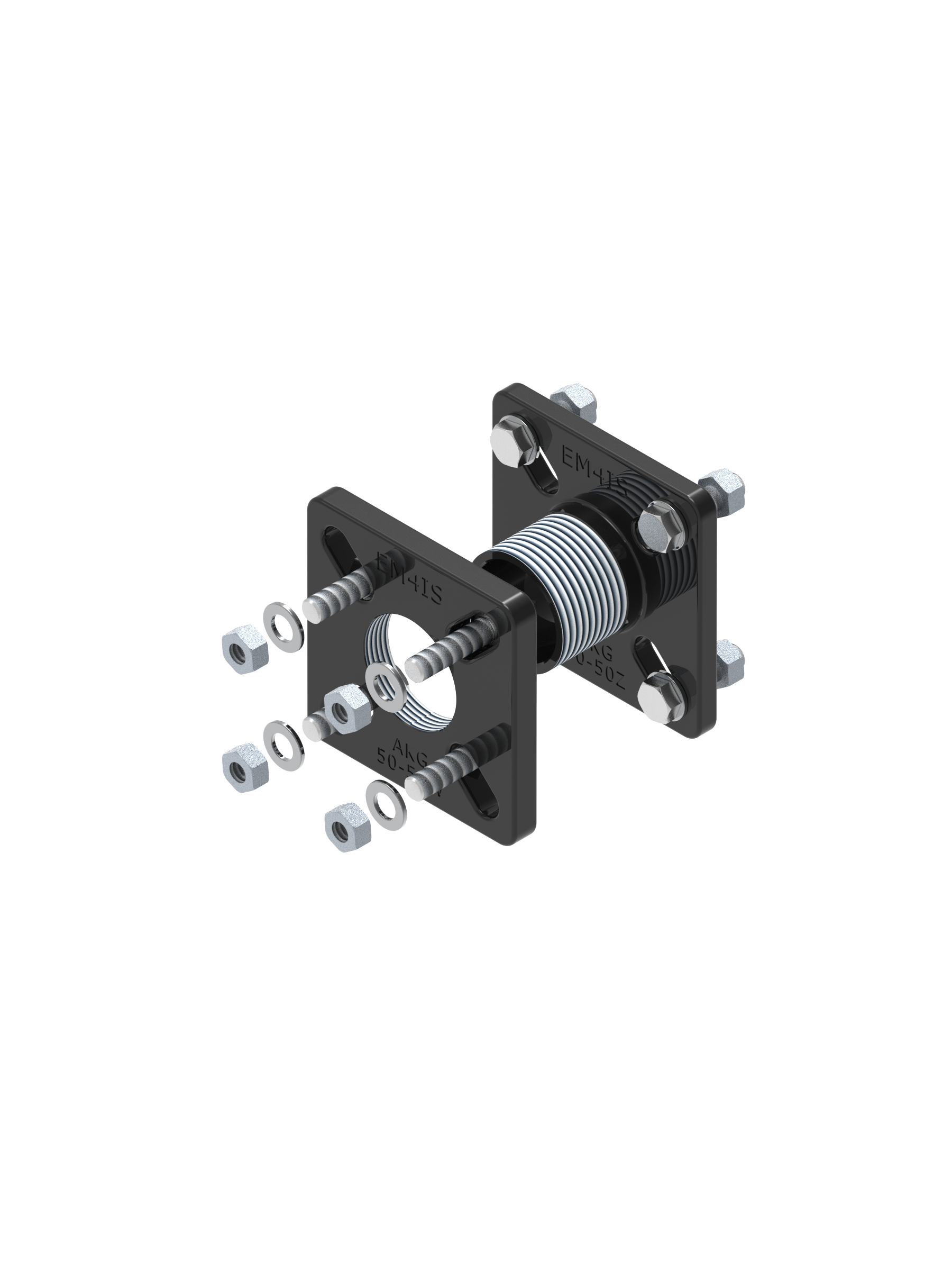

Threaded flange adapters primarily consist of a square flange with oval holes and a threaded part, protruding for external threads and a threaded hole for internal threads. The whole is complemented by stainless steel mounting screws, washers, nuts and a flat gasket made of environmentally resistant EPDM. Advantages of AKG adapters
- Possibility of connecting flanges of different diameters according to DN and pressures PN with threaded elements according to BSP
- Durability in aggressive sewage environments
- Small installation dimensions at the pump or on the pipeline
- Quick and easy assembly
|
Technical parameters of the adapters |
||||
|
Model |
Thread |
Matching DN/PN flange |
Dimensions* |
Weight* |
|
AKG 50-50Z |
2 inch external |
DN32 PN6, DN32 PN10 DN40 PN6, DN40 PN10 DN50 PN6, DN50 PN10 DN65 PN6 |
130x130x62 mm |
1.4kg |
|
AKG 50-50W |
2 inches internal |
130x130x15mm |
1.3kg |
|
|
AKG 50-40Z |
1½ inch outer |
130x130x62 mm |
1.4kg |
|
|
AKG 50-32Z |
1¼ inch outer |
130x130x62 mm |
1.5kg |
|
Made of materials
- AKG adapter - powder-coated ductile cast iron
- AKG U flat gasket - EPDM rubber
- M12x50 DIN 933 screws - 304 stainless steel
- Flat washer fi13 DIN 125 - 304 stainless steel
- Spring washer for M12 DIN 127 - stainless steel
- M12 DIN 934 nut - 304 stainless steel
The set includes:
- AKG 50-50Z adapter - 1 pc.
- Universal gasket AKG 50-50U (DN50 PN6 - DN65 PN6) - 1 pc.
- M12x50 DIN 933 screws - 4 pcs.
- Washers fi13 DIN 125 - 8 pcs.
- Spring washers for M12 DIN 127 - 4 pcs.
- M12 DIN 934 nuts - 4 pcs.
Registered industrial design!
