CUTERA - Reliable pump for raw sewage with a grinder Hmax=24m
Couldn't load pickup availability

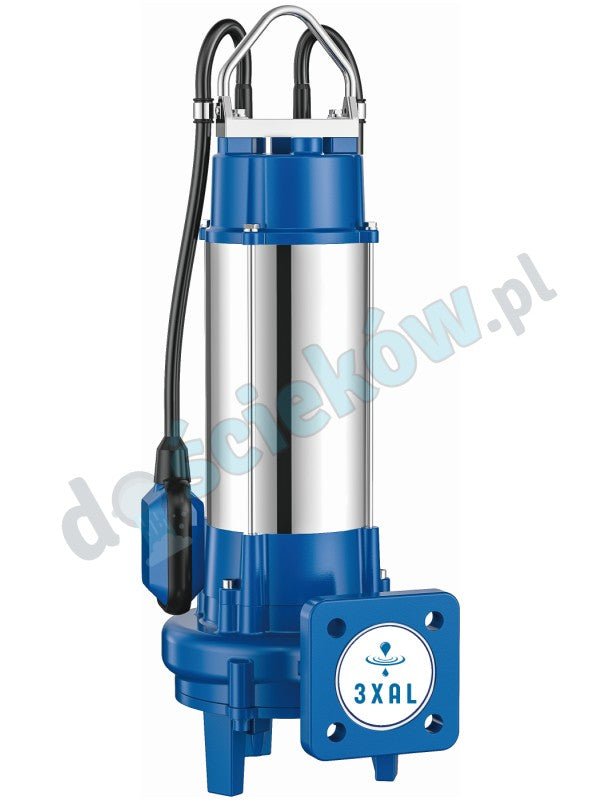

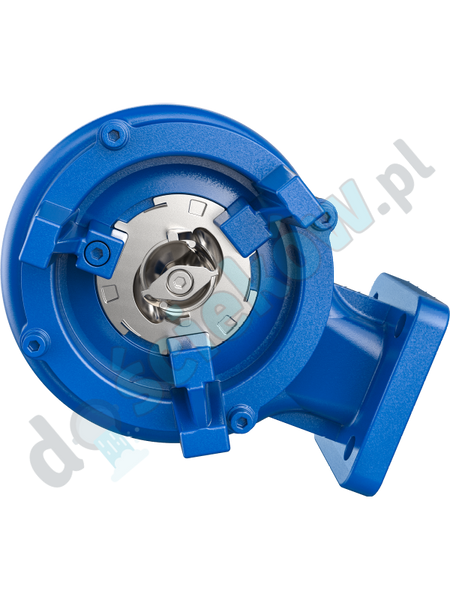

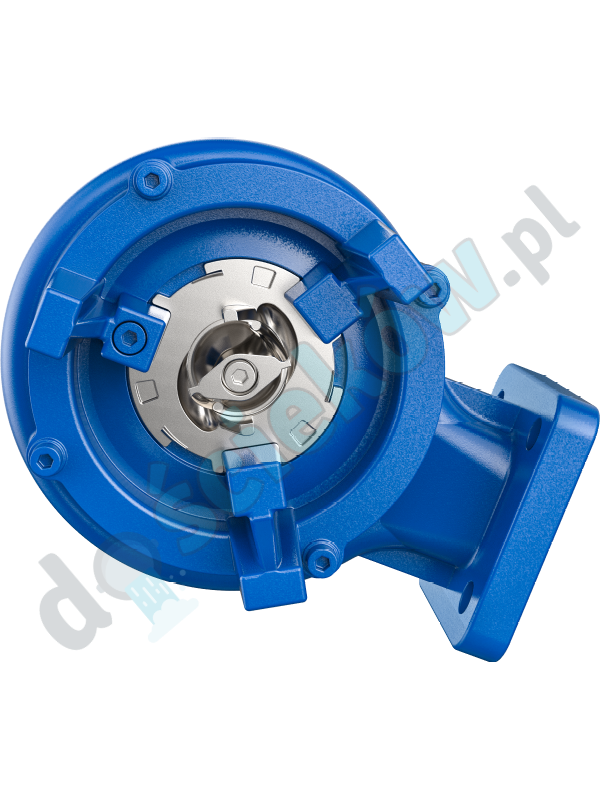

Submersible pump CUTERA is a perfect solution for home sewage pumping stations, where it is highly resistant to clogging thanks to an exceptionally sharp blade made of hard 440C alloy steel. Corrosion-resistant construction, made of a combination of cast iron and stainless steel. CUTERA it will also meet the expectations of users of home septic tanks, who will appreciate its compact design and low weight when moving and frequently lowering it into tanks.
TECHNICAL DATA
|
No |
Pump/model* |
Swimmer |
Connection |
Flight |
P2 power |
1~230V |
C |
3~400V |
Cable |
|
1 |
CUTERA 800M |
NO |
DN50 PN6 |
5 |
0,8 |
7,7 |
30 |
- |
3 x 1mm2 – 10 m |
|
2 |
CUTERA 800 MP |
YES |
DN50 PN6 |
5 |
0,8 |
7,7 |
30 |
- |
3 x 1mm2 – 10 m |
|
3 |
CUTERA 800T |
NO |
DN50 PN6 |
5 |
0,8 |
- |
- |
3,4 |
4 x 0.75mm2 – 10 m |
|
4 |
CUTERA 1100M |
NO |
DN50 PN6 |
5 |
1,1 |
9,7 |
45 |
- |
3 x 1.5mm2 – 10 m |
|
5 |
CUTERA 1100 MP |
YES |
DN50 PN6 |
5 |
1,1 |
9,7 |
45 |
- |
3 x 1.5mm2 – 10 m |
|
6 |
CUTERA 1100 T |
NO |
DN50 PN6 |
5 |
1,1 |
- |
- |
3,7 |
4 x 0.75mm2 – 10 m |
|
7 |
CUTERA 1500M |
NO |
DN50 PN6 |
5 |
1,5 |
10,5 |
50 |
- |
3 x 1.5mm2 – 10 m |
|
8 |
CUTERA 1500 MP |
YES |
DN50 PN6 |
5 |
1,5 |
10,5 |
50 |
- |
3 x 1.5mm2 – 10 m |
|
7 |
CUTERA 1500 T |
NO |
DN50 PN6 |
5 |
1,5 |
- |
- |
4,2 |
4 x 0.75mm2 – 10 m |
*M – version 1~230 V without float, MP – version 1~230 V with float, T – version 3~400 V without float
DIMENSIONS
|
Dimensions |
CUTERA 800 |
CUTERA 1100 |
CUTERA 1500 |
||||||
|
[mm] |
M |
MP |
T |
M |
MP |
T |
M |
MP |
T |
|
B |
254 |
254 |
254 |
||||||
|
C |
58 |
58 |
58 |
||||||
|
D |
140 |
140 |
140 |
||||||
|
E |
553 |
573 |
601 |
||||||
|
F |
152 |
152 |
152 |
||||||
|
G |
102 |
102 |
102 |
||||||
|
H |
97 |
97 |
97 |
||||||
|
I |
106 |
106 |
106 |
||||||
|
Weight [kg] |
28,5 |
30,5 |
33 |
||||||
Construction
- Motor: asynchronous squirrel-cage type,
- Degree of protection: IP 68,
- Insulation class: B,
- Built-in thermal protection for ~230 V,
- Motor housing: 304 stainless steel,
- Chopper: hardened 304 stainless steel with a hardness of 45 HRC,
- Motor shaft: 402 stainless steel,
- Electric cable: H07RNF terminated with a plug for 230 V or free terminals for 400 V,
- Class A2 / AISI 304 screws,
- Seal: double mechanical seal: upper ceramic/graphite, lower: silicon carbide/silicon carbide, nitrile rubber.
CUTERA pump versions
- CUTERA 800 M - 1~230 V
- CUTERA 800 MP - 1~230 V with float
- CUTERA 800 T - 3~400 V
- CUTERA 1100 M - 1~230 V
- CUTERA 1100 MP - 1~230 V with float
- CUTERA 1100 T - 3~400 V
- CUTERA 1500 M - 1~230 V
- CUTERA 1500 MP - 1~230 V with float
- CUTERA 1500 T - 3~400 V
MATERIALS
- Motor housing – 201 stainless steel
- Chopper: 440C alloy steel
- Cover, partition and impeller – gray cast iron
- Double mechanical seal: CE/C; SiC/SiC
- Handle – 304 stainless steel
- Screw connections – 304 stainless steel
- Power cord - EPDM
CABLES
All power cables for CUTERA pumps are made of H07RNF cable, 10 meters long.
- M and MP versions powered by 1~230 V have a standard three-wire plug with two pins
- The T version powered by 3~400 V has a cable with four free wires
STANDARDS
• Machinery Directive 2006/42/EC
• Low Voltage Directive 2014/35/EU
• Electromagnetic Compatibility Directive 2014/30/EU
• EN ISO 12100:2010
• EN 809:1998+A1:2009+AC:2010
• EN 60204-1:2018
• EN 60335-1:2012+A11:2014+A13:2017
+A1:2019+A14:2019+ A2:2019+A15:2021
• EN IEC 60335-2-41:2021+A11:2021
• EN 62233:2008+AC:2008
• EN 60034-1:2010+AC:2010
• EN IEC 55014-1:2021
• EN IEC 55014-2:2021
• EN IEC 61000-3-2:2019+A1:2021
• EN 61000-3-3:2013+A1:2019+A2:2021
OTHER
- Permissible immersion of the pump is max. 5 m
