Guide support WSP 269-130-90 (guides Ø26.9x2, spacing 130 mm) for submersible pumps

Guide support EM4IS WSP 269-130-90 is intended to hold in one place the pipe guides on which the pumps are lowered onto the coupling feet in sewage and rainwater pumping stations. A properly made and installed bracket fulfills a very important function when lowering and pulling out pumps.

At the customer's request, we make various types of guide brackets as replacements for brackets from other manufacturers that have been damaged or no longer meet the investor's expectations.

The brackets we offer are made of stainless steel and rubber sleeves (EPDM), which stiffen the guides under compression and prevent them from falling apart. vibrations of the so-called "ringing".

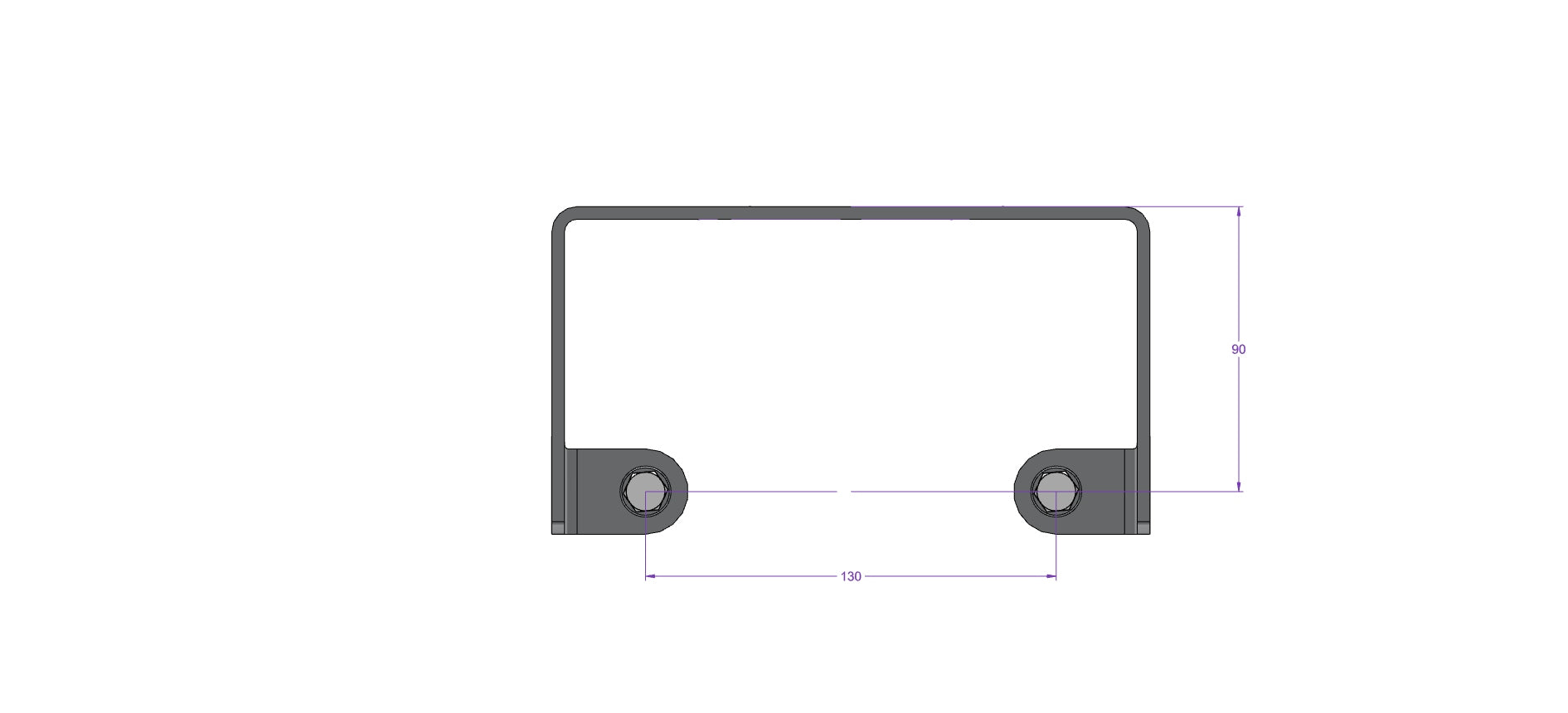

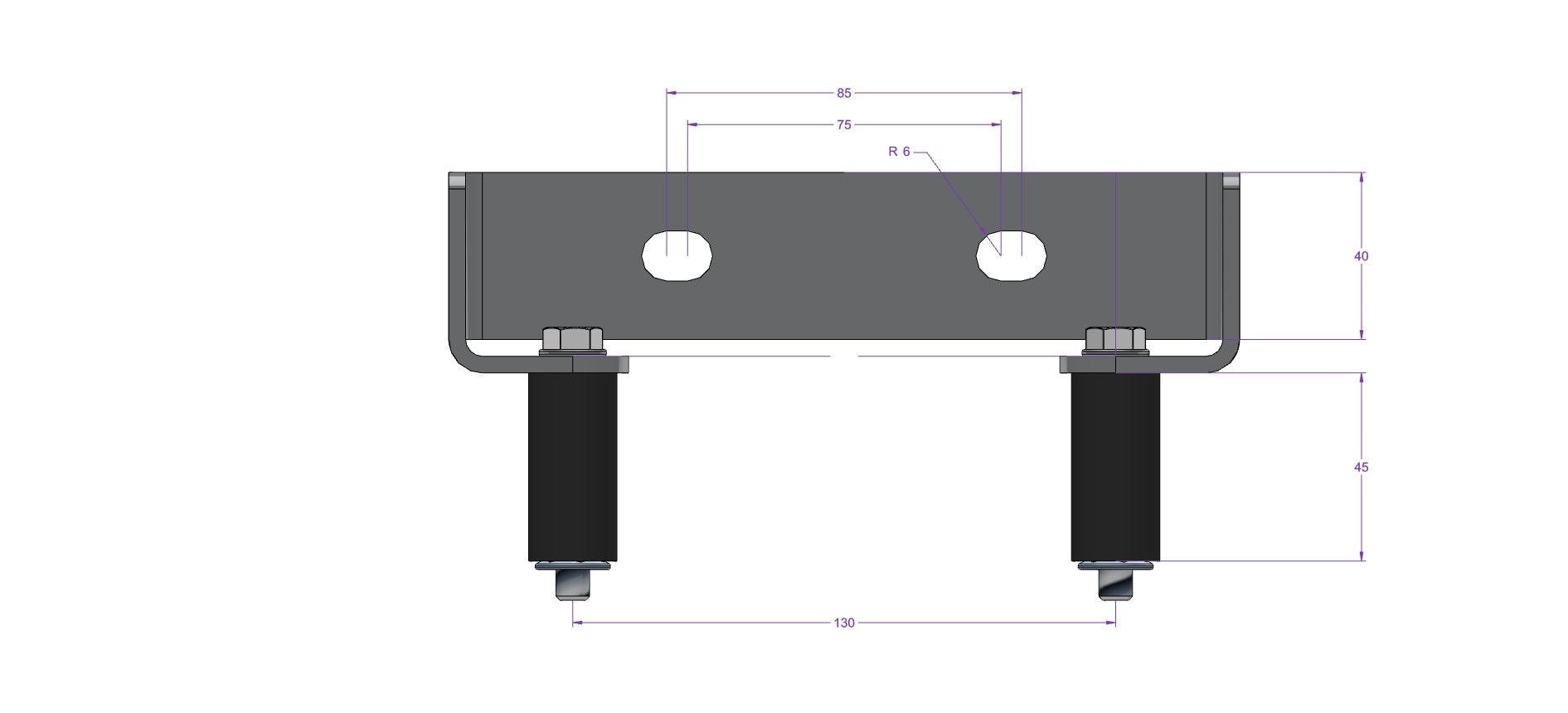

Parameters of the bracket WSP-269-130-90:

• pipe guides Ø26.9x2 mm (3/4")
• guide spacing 130 mm
• guide distance from the wall 90 mm

Advantages:

• High resistance to corrosion in sewage - made of stainless steel AISI 304 and EPDM,
• Stiffening of guides with compressed sleeves,
• Tolerance for uneven length of guides - thanks to long bushings,
• Possibility of repeated installation and removal.

The set includes:

• Stainless steel support frame
• 2 pieces of rubber sleeves made of EPDM
• 2 sets of screw connections for compressing the rubber sleeves


PRODUCT TO ORDER (3-5 business days)

You need a different sleeve size or a different guide spacing - we will make them to order for you!
