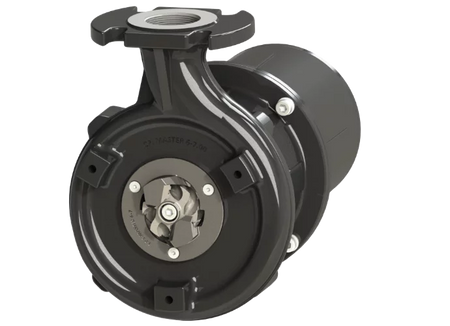

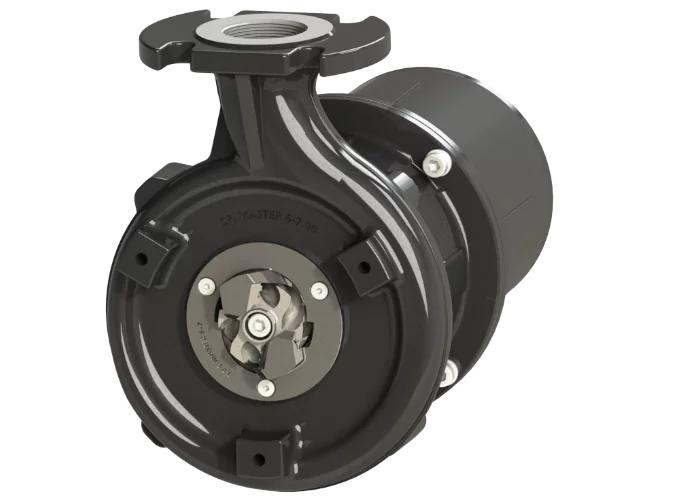

MASTER 6 - 3 kW / 50 Hz - sewage pump with grinder

Pump designed for pumping dirty liquids with suspended solids or fibrous materials, with a fully open multi-vane inlet grinder system and hardened steel cutting edges. MASTER electric submersible pumps equipped with a grinder are particularly recommended for solving problems related to lifting sewage containing solids or fibrous materials from single-family homes, small housing estates, campsites, hotels or service points.

The fragmentation of solid particles into small fragments (45,000 cuts per minute) and the high pressure generated by the pump allow to overcome significant differences in levels and resistance in narrow pipelines.

The horizontal MASTER connection allows for mounting on a coupling foot, which can be purchased as a separate accessory.

Technical characteristics:

• Maximum lifting Hmax = 34 m,
• Maximum capacity Qmax = 5.5 l/s / 330 l/min / 19.8 m3/h,
• Open multi-blade rotor + shredder ,
• Solid parts passage: Ø9 mm,
• Horizontal connection: DN50 PN0/16 / G2",
• Maximum water temperature: 40°C,
• pH range: 6-10,
• Maximum sewage density 1.1 kg/dm3,
• Maximum draft 20 m,
• Power cable 10 m.

• Weight: 55 kg.

Available versions:

• MASTER 6 - 3~400V,

Construction:

• Squirrel cage asynchronous motor in a dielectric and antioxidant oil bath
• IP 68 protection class
• Insulation class F
• Single phase power supply with built-in motor protection and built-in capacitor and three phase power supply with mandatory protection provided by the user.
• Engine housing Cast iron GG 25,
• Shaft stainless steel AISI 420,
• Hardened stainless steel shredder,
• Electric cable neoprene H07RN8-F oil resistant,
• A2 / AISI 304 class screws,
• O-ring and nitrile lip seal,
• Two mechanical seals in a chamber with ecological oil, the upper one ceramic on graphite, the lower one silicon carbide on silicon carbide.
