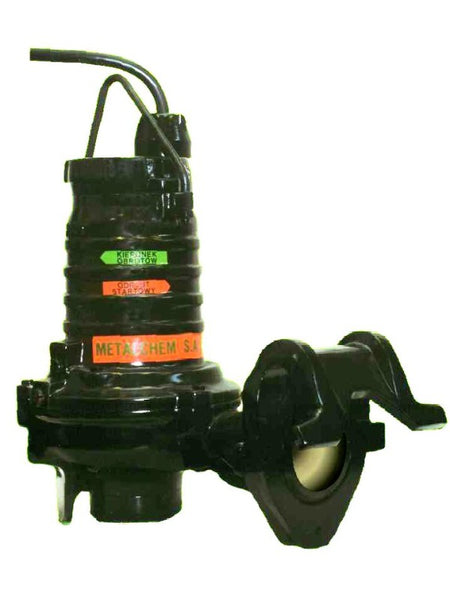

MSV-R-22 - 2.2kW/400V - Industrial sewage pump with grinder Hmax = 26 m

Sewage pump with grinder MSV-R-22 is intended for pumping sanitary and industrial sewage. It is used in sewage installations, sewage treatment plants and pumping stations, as well as all types of drainage.
The axial grinder built into the inlet ensures trouble-free operation with pipelines with cross-sections of DN50, DN65 and larger. The high pressure generated by the pump allows sewage to be pumped over long distances through narrow pipelines.
The pump has a temperature limiter in three phases of the motor stator windings and a humidity switch. These elements exclude the possibility of damage to the engine in the event of overload or moisture getting inside.
Pump motor MSV-R-22 it is sealed on the side of the pump unit with a double mechanical seal in the oil chamber.

Technical characteristics

• Maximum lifting Hmax = 26 m - curve no. 2,
• Maximum efficiency Qmax = 8.5 l/s / 510 l/min / 30.6 m3/h,
• Power 2.2kW/400V,
• Open rotor,
• axial shredder,
• Horizontal connection: DN65 or DN80 according to the Metalchem-Warszawa standard (or others on request),
• Maximum water temperature: 40°C,
• pH range: 6-10,
• Maximum sewage density 1.1 kg/dm3,
• Maximum immersion 10 m,
• Power cable 10 m.

Construction

• Motor: asynchronous squirrel-cage type,
• Degree of protection: IP 68,
• Insulation class: F,
• Built-in thermal protection and humidity sensor,
• Motor and pump casing: Cast iron ŻL200,
• Impeller: Cast iron ŻL250,
• Shredder: Cast iron ŻL250
• Motor shaft: stainless steel,
• Electric cable: H07RN8 terminated with free terminals,
• Class A2 / AISI 304 screws,
• Seal: double mechanical seal.

MADE TO ORDER PRODUCT!
