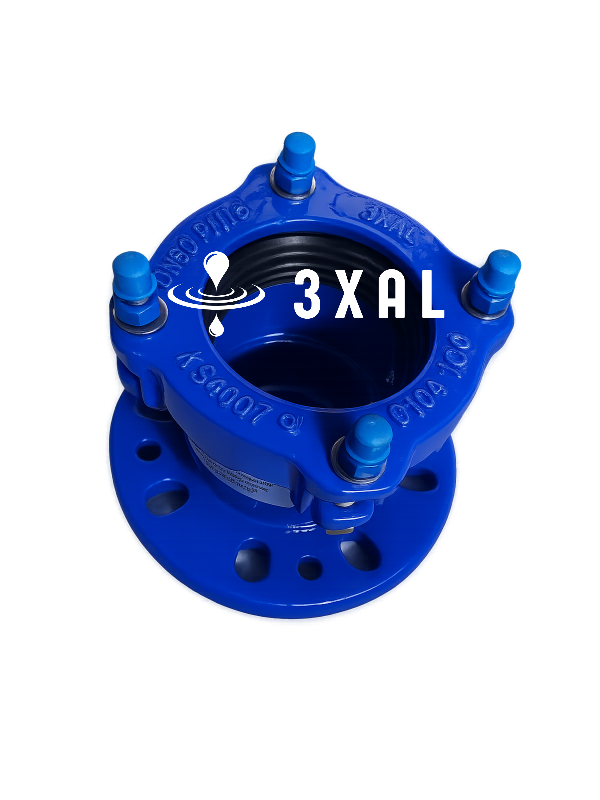

Pipe and flange connector 3XAL ŁRK DN80 PN6 PN10 PN16

Brand pipe-flange connector 3XAL was created for connecting pipes with flange connections. A properly profiled gasket made of sewage-resistant EPDM rubber compresses the screws and immobilizes the pipe when tightening the screws. Thanks to the long and flexible seal, even straight cut pipes will be permanently and effectively fixed.

Advantages of the connector 3XAL ŁRK DN80

• Universal connection flange for various pressures: PN6, PN10 and PN16.
• Made of sewage-resistant components
• Short pressure screws that do not require disconnecting the pipeline to replace or adjust them
• Wide range of pipe diameters
• Plastic caps protect the threads against contamination

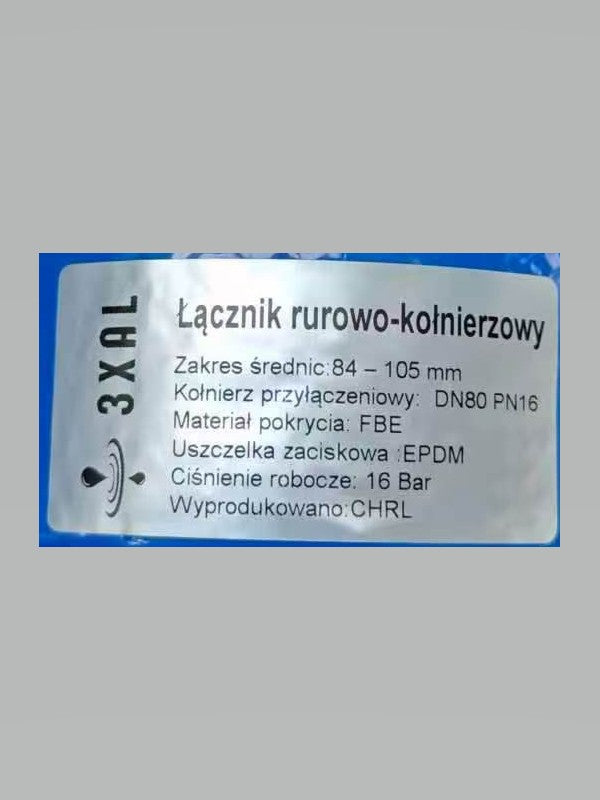

Product parameters

• Nominal flange diameter DN80
• Holes in the flange according to EN 1092 PN6/10/16
• Pipe diameter range 84-105 mm
• Flange can be mounted with 8 screws according to DN80 PN10/16 and with 4 screws according to DN80 PN6
• Intended for dirty water and sewage

Material of construction

• Body:   Ductile iron GJS500-7
• Pressure ring:   Ductile iron GJS500-7
• Gasket:   EPDM
• Bolted connections:   AISI 304 stainless steel
• Anti-corrosion protection:   powder coating with epoxy paint
