PVT35 - Septic tank and sewage pump with free passage of 35 mm

Only 1 left
£199.00 contains TAX
Version

The right selection of the pump is the basis for its efficiency and durability.

The PVT35 submersible pump is an excellent solution for home sewage pumping stations and septic tanks, where it is highly resistant to clogging thanks to the large passage under the impeller and its construction, made of stainless steel and cast iron, is resistant to aggressive environments. PVT35 will also meet the expectations of users of home septic tanks, who will appreciate its compact design and low weight when moving and frequently lowering it into the tanks.

Technical characteristics

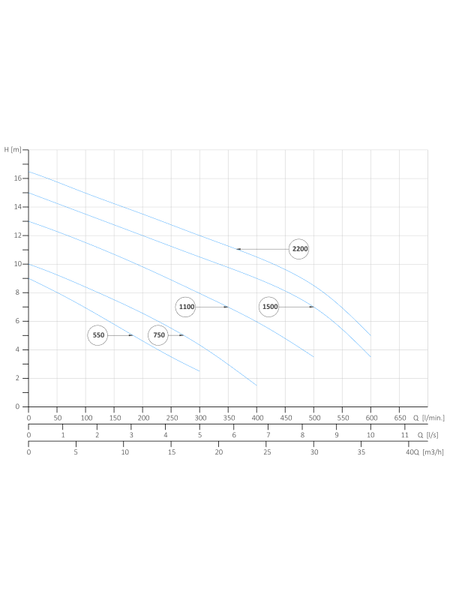

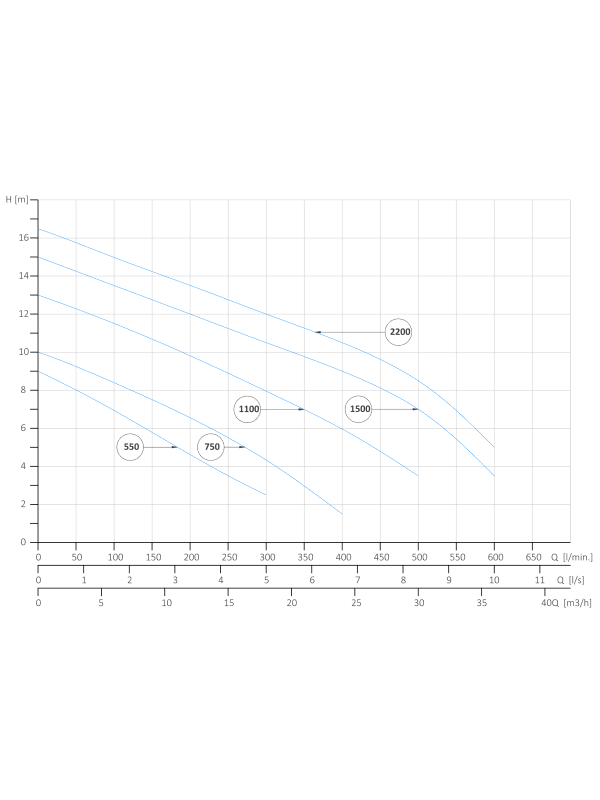

  • Maximum lifting Hmax = 9 - 16.5 m,
  • Maximum efficiency Qmax = 5-10 l/s / 300-600 l/min / 18-36 m3/h,
  • Open rotor,
  • Solids passage: Ø35 mm,
  • Vertical connection: GW2",
  • Maximum water temperature: 35°C,
  • pH range: 6-10,
  • Maximum sewage density 1.1 kg/dm3,
  • Maximum immersion 5 m,
  • Power cable 10 m.
  • 24-month warranty

Technical data

No

Pump/model*

Swimmer

Connection
 [inches]

Flight
[mm]

P2 power
 [kW]

1~230V
 And [A]

C
[μF]

3~400V
 And [A]

Cable
[n x mm2 - length]

M

MP

F

1

PVT35-550

NO

YES

NO

2”

35

0,55

4,5

15

1,75

1~230V - 3 x 1.0mm2 – 10 m
3~400V - 4 x 1mm2 – 10 m

 2

PVT35-750

NO

YES

NO

2”

35

0,75

5,5

18

1,9

1~230V - 3 x 1.0mm2 – 10 m
3~400V - 4 x 1mm2 – 10 m

 3

PVT35-1100

NO

YES

NO

2”

35

1,1

8,4

25

2,9

1~230V - 3 x 1.0mm2 – 10 m
3~400V - 4 x 1mm2 – 10 m

4

PVT35-1500

NO

YES

NO

2”

35

1,5

10,7

30

3,7

1~230V - 3 x 1.5mm2 – 10 m
3~400V - 4 x 1mm2 – 10 m

5

PVT35-2200

NO

YES

NO

2”

35

2,2

12,4

45

5,4

3~400V - 4 x 1mm2 – 10 m

*M – version 1~230 V without float, MP – version 1~230 V with float, T – version 3~400 V without float

Dimensions

Dimensions
[mm]

PVT35
550

PVT35
750

PVT35
1100

PVT35
1500

PVT35
2200

Version

M

MP

T

M

MP

T

M

MP

T

M

MP

T

M

MP

T

A

159

159

159

159

159

B

244

244

244

244

244

C

172

172

172

172

172

D

441

451

471

491

511

E

87

87

87

87

87

F

165

165

165

165

165

G

80

80

80

80

80

Weight [kg]

17,9

18,2

18

18,9

19,3

19

20,8

21,1

20,9

22,6

23

22,8

23,9

24,2

24

Construction

  • Motor: asynchronous squirrel-cage type,
  • Degree of protection: IP 68,
  • Insulation class: B,
  • Built-in thermal protection for 230V,
  • Motor and pump housing: 304 stainless steel/gray cast iron,
  • Impeller: 304 stainless steel,
  • Motor shaft: 402 stainless steel,
  • Electric cable: H07RN8 terminated with a plug (230V) and free terminals (400V),
  • Class A2 / AISI 304 screws,
  • Seal: double mechanical seal Ceramic/Graphite and SiC/SiC.

PVT35 pump versions

  • PVT35-550 M - 1~230 V
  • PVT35-550 MP - 1~230 V with float
  • PVT35-550 T - 3~400 V
  • PVT35-750 M - 1~230 V
  • PVT35-750 MP - 1~230 V with float
  • PVT35-750 T - 3~400 V
  • PVT35-1100 M - 1~230 V
  • PVT35-1100 MP - 1~230 V with float
  • PVT35-1100 T - 3~400 V
  • PVT35-1500 M - 1~230 V
  • PVT35-1500 MP - 1~230 V with float
  • PVT35-1500 T - 3~400 V
  • PVT35-2200 M - 1~230 V
  • PVT35-2200 MP - 1~230 V with float
  • PVT35-2200 T - 3~400 V
