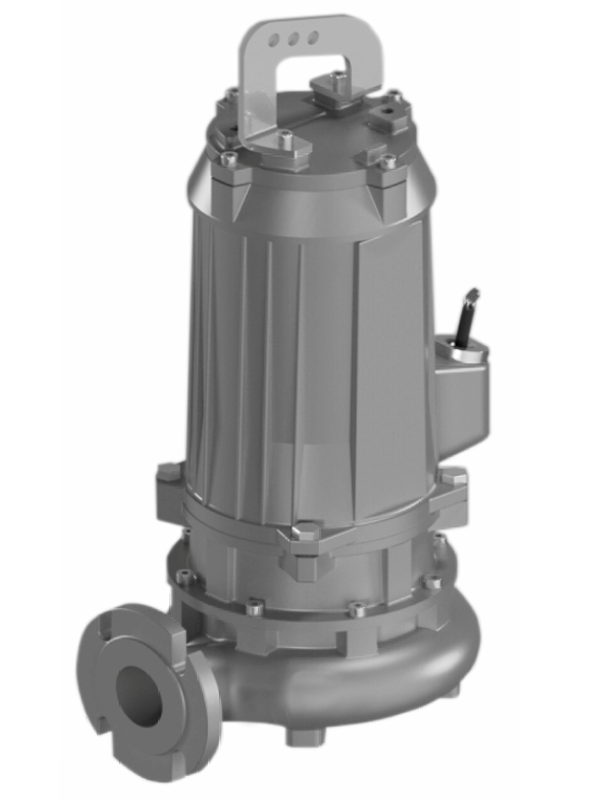

RS 659/2 - Efficient DN65 sewage pump with VORTEX VORTEX VERTIVER/400V - 2900 RPM

Efficient 2 polar sewage pump RS with a rotor Vortex Italian factory Pump Rotomec SRL It is intended for pumping large amounts of sewage containing solids with high pressure.

The VORTEX multi -colored rotor with a large free flight guarantees that the pump will not clog even large or long solid fractions such as wet wipes, hyginical sticks, pieces of rags or residues of food from a restaurant kitchen.

Sewage pumps Rotomec RS 659/2 They have high performance with relatively low power. These pumps have a free flight under a 45 mm rotor, providing high efficiency and protecting against clogging the content of faeces and septic tanks.

Parameters:

• Pump power: 9.8 kW
• Power supply: 3 ~ 400 V
• 2 polar engine - 2900 rpm.
• Maximum lifting: 41.5 m
• Maximum capacity: 23 l/s - 1380 l/min. - ~ 82.8 m3/h
• Size of pollution: up to 45 mm
• Maximum temperature of the liquid: 40 ° C
• Horizontal connection DN65 PN10
• Protection degree: IP68
• 10x2.5 mm2 cable from: 10 m
• Dimensions: L = 399 mm, h = 745 mm
• Weight: 145 kg

Advantages:

• Low lifting with low power
• Highly resistant to clogging
• Double mechanical seal in the oil chamber
• Horizontal flange connection for easy installation with a coupling foot
• Resistance to pollution up to 40 mm

Available versions:

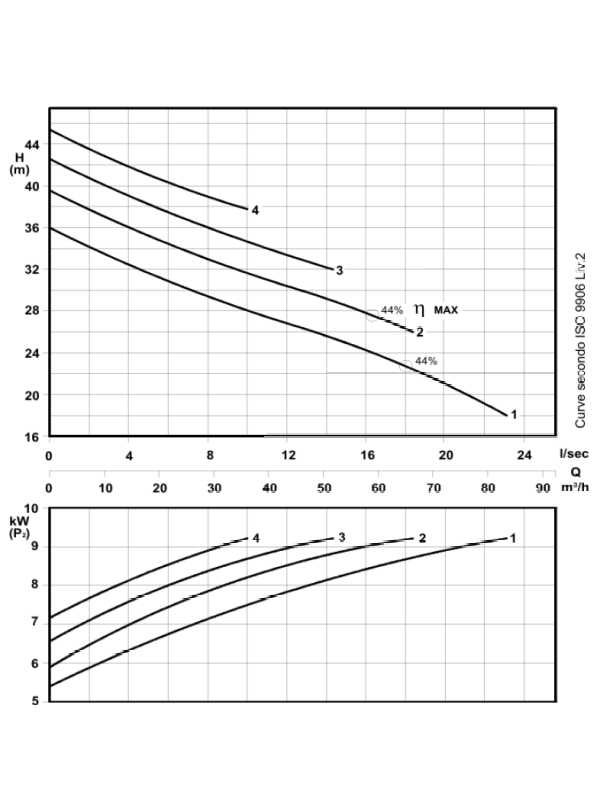

• 1175 - hmaks = 36m and qmaks = 23 l/s - curve
• 1185 - hmaks = 39.5m and qmaks = 18.5 l/s - curve
• 1195 - hmaks = 42.5m and qmaks = 14 l/s - curve
• 1205 - hmaks = 43.5m and qmaks = 10 l/s - curve No. 4

Construction:

• Cage type asynchronous engine, 2-paddled, cooled surrounding liquid
• Insulation class f
• Engine housing: G25 gray cast iron
• Pump body: G25 gray cast iron
• Pump rotor: G25 gray cast iron
• Aisi 420 steel stainless steel,
• Cast iron legs built into the body
• Electric cable neoprene H07RNF oil resistant,
• Class A2 / AISI 304 screws,
• Mechanical sealing seal: silicon carbide
• Upper mechanical seal: graphite/ceramics
• Built -in leak probe
• Built -in thermal protection

Pump on request!
