Stainless steel pad DIN 127 A2 Inox

In stock
£1.00 contains TAX
Internal diameter

Elastic pad DIN 127 It is most often used as an element protecting the screw against unscrewing. Elastic pad Put between the threaded element and the head of the screw or nut, thanks to its structure, it forces the continuous tension of the threaded connection, not allowing the screw or nut on the automatic movement under the influence of e.g. vibrations of the device or structure.

Material - A2 stainless steel (AISI 304)

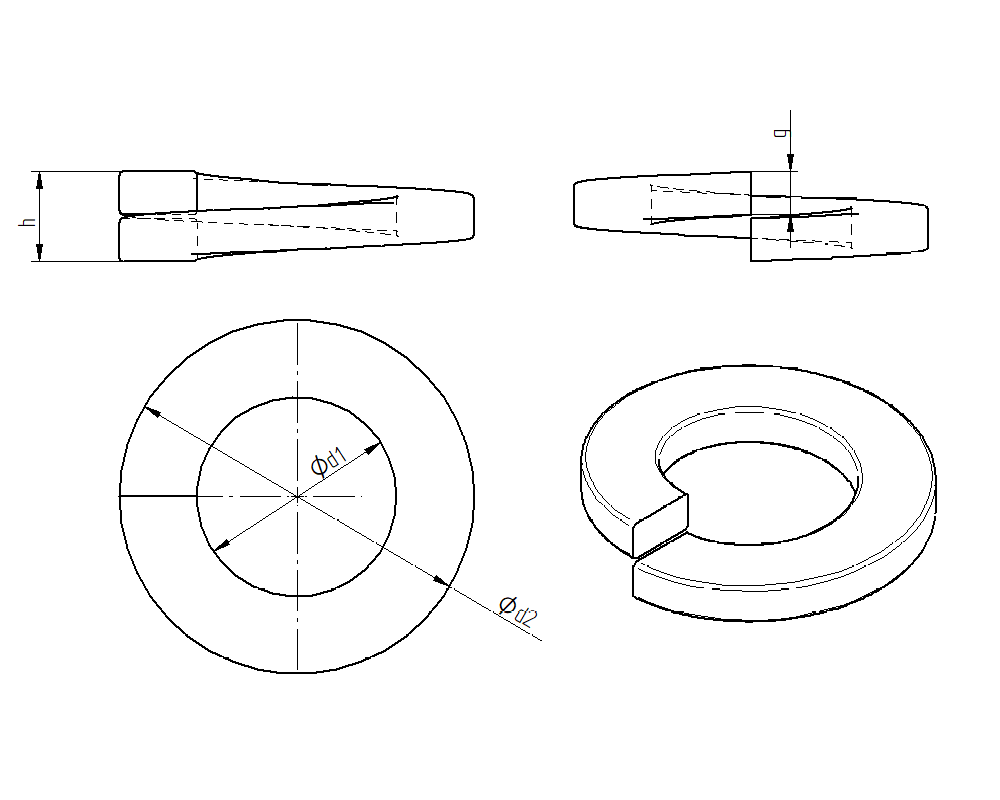

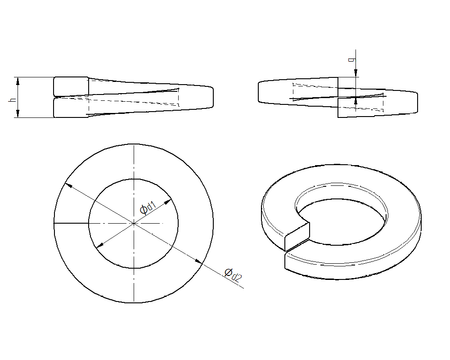

Size table

D  D1 to the thread d2 H g
2.0 2.1 M2 4.4 1.0 0.5
2.3 2.3 M2.3 4.8 1.0 0.6
2.5 2.6 M2.5 5.1 1.2 0.6
2.6 2.7 M2.6 5.2 1.2 0.6
3.0 3.1 M3 6.2 1,6 0.8
3.5 3.6 M3.5 6.7 1.6 0.8
4 4.1 M4 7.6 1.8 0.9
5 5.1 M5 9.2 2.4 1.2
6 6.1 M6 11.8 3.2 1.6
8 8.1 M8 14.8 4.0 2.0
10 10.2 M10 18.1 4.4 2.2
12 12.2 M12 21.1 5.0 2.5
14 14.2 M14 24.1 6.0 3.0
16 16.2 M16 27.4 7.0 3.5
18 18.2 M18 29.4 7.0 3.5
20 20.2 M20 33.6 8.0 4.0
22 22.5 M22 35.9 8.0 4.0
24 24.5 M24 40.0 10.0 5.0
27 27.5 M27 43.0 10.0 5.0
30 30.5 M30 48.2 12.0 6.0
33 33.5 M33 55.2 12.0 6.0
36 36.5 M36 58.2 12.0 6.0
39 39.5 M39 61.2 12.0 6.0
42 40.5 M42 63.5 14.0 7.0
45 42.5 M45 68.2 14.0 7.0
48 49 M48 75.0 14.0 7.0



If the chosen pad is not available, it means that it is available to order. It is usually 1-3 business days.
