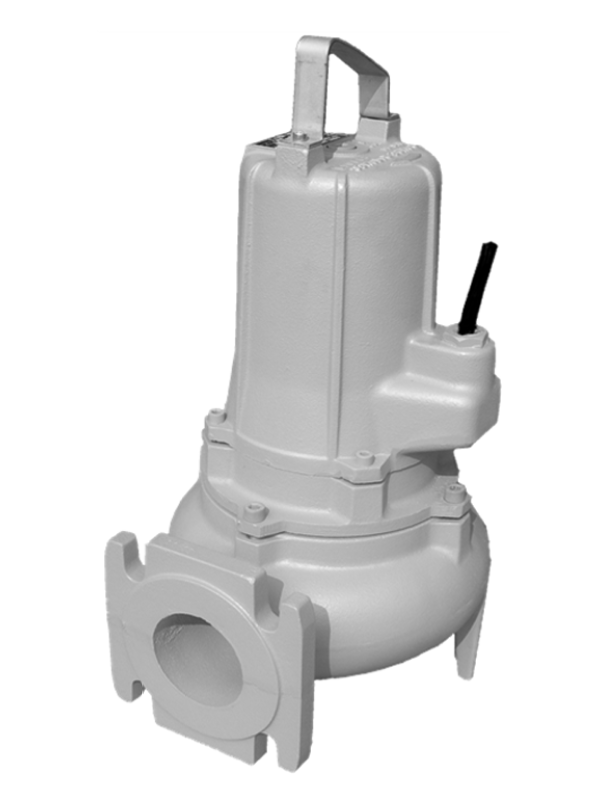

TL 813 - efficient DN80 sewage pump with VORTEX 2.5KW/400V VORTEX rotor - 2900 RPM

Efficient 4 polar sewage pump TL 813 with a Vortex Vortex rotor Pump Rotomec SRL It is intended for pumping large amounts of sewage containing solid bodies with a slight lift.

The VORTEX multi -colored rotor with a large free flight guarantees that the pump will not clog even large or long solid fractions such as wet wipes, hyginical sticks, pieces of rags or residues of food from a restaurant kitchen.

Rotomec TL 813 sewage pumps with the DN80 collar have high efficiency with relatively low power. These pumps have a free flight under the 70 mm rotor, providing high efficiency and protecting against clogging the content of faeces and septic tanks.

Parameters:

• Pump power: 2.5 kW
• Power supply: 3 ~ 400 V
• 4 polar engine - 2900 rpm.
• Maximum lifting: 16 m
• Maximum capacity: 18 l/s - 1080 l/min. - ~ 64.8 m3/h
• Size of pollution: up to 70 mm
• Maximum temperature of the liquid: 40 ° C
• Horizontal connection DN80 PN10
• Protection degree: IP68
• Long cable: 10 m
• Dimensions: 350 mm, h = 550 mm

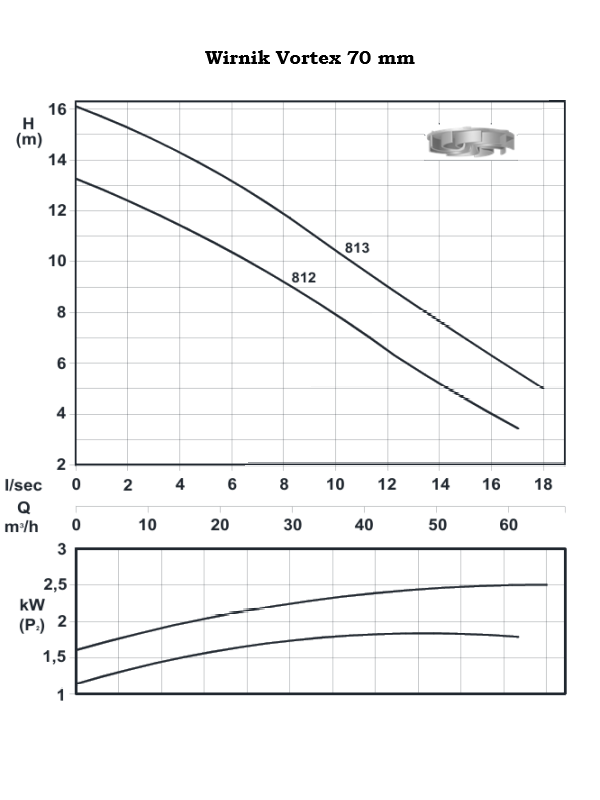

• Characteristics No. 2

Advantages:

• High low power performance
• Highly resistant to clogging
• Double mechanical seal in the oil chamber
• Horizontal flange connection for easy installation with a coupling foot
• Resistance to pollution up to 70 mm

Available version:

• 3 ~ 400 V

Construction:

• Cage type asynchronous engine, 4-pole, cooled surrounding liquid
• Insulation class f
• Engine housing: G20 gray cast iron
• Pump body: G20 gray cast iron
• Pump rotor: G20 gray cast iron
• Aisi 420 steel stainless steel,
• Cast iron legs built into the body
• Electric cable neoprene H07RNF oil resistant,
• Class A2 / AISI 304 screws,
• Mechanical sealing seal: silicon carbide
• Upper mechanical seal: graphite/ceramics

Pump on request!
