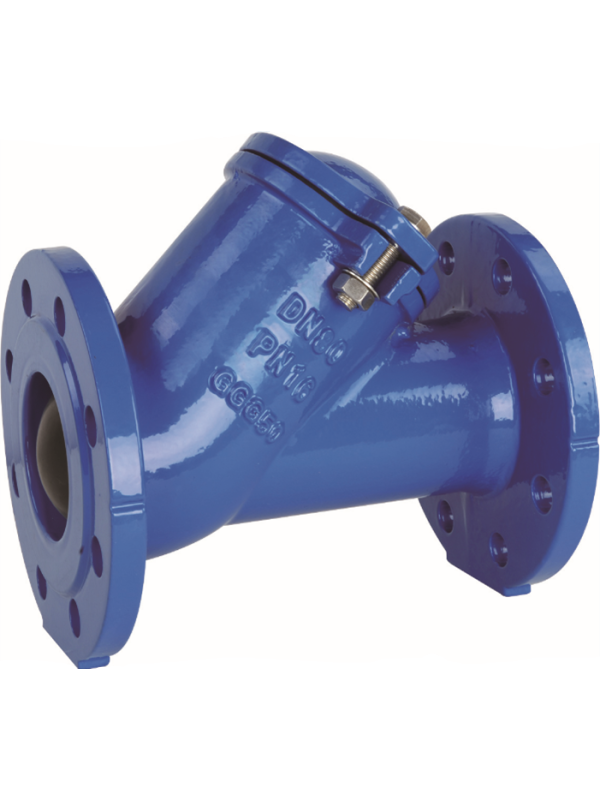

ZZK -K BUNTING VALVE FOR DN50 Sewage - DN300 PN10/16 flange

ZZK-K marki 3XAL is a flange ball check valve for sewage and dirty water. The best type of check valve for sewage because, thanks to the rubberized ball, it effectively prevents backflow after pumping.

Flanged ball check valves are perfect for water and sewage installations, where most of the connections are made with flanges and there is no room for unscrewing the threads and pushing apart the connections or pipeline elements.

ADVANTAGES ZZK-K

• Effective prevention of backflow
• High resistance to garbage and fibrous fractions in sewage - full passage
• Materials resistant to aggressive domestic sewage - EPDM/SS 304
• Quiet operation thanks to the rubberized ball
• Inspection chamber for cleaning or replacing the ball
• Flanged connections that do not require moving the elements apart (only loosening the gasket between the flanges)

• Easier installation thanks to the connections screw type
• Ronge range of ball check valves from DN50 to DN200
• Maximum working pressure:
  • DN50-DN65 10 Bar (PN10),
  • DN80-DN100 - 16 Bar (PN10/16),
  • DN150-DN200 - 10 Bar (PN10)
• Low sealing pressure from 0.3-0.5 Bar

MATERIALS

1. Body - powder-coated ductile iron
2. Cover - painted ductile iron powder
3. Ball - EPDM coated steel
4. Sealing O-ring - EPDM
5. Screw connections - 304 stainless steel

COMPLIANCE WITH STANDARDS

• EN1092-2 PN16 and AS4087, AS4087 (AS2129 Table E),

• Category A standard ISO5208,
• EN558-1 series 48 (DIN3202 F6)

• Tested pressure:
  • 1.1x normal pressure for ball seat
  • 1.5x normal pressure for body zaworu

VERTICAL OR HORIZONTAL INSTALLATION

The 3XAL brand is a confirmation of the high quality of the product and its suitability in sewage and rainwater pumping station systems.
